Ingredient Fruit Feeder
FRUIT FEEDER,
Suitable for 100 to 600-liter freezer,
Model: IFF 100 to 600
Ingredient Fruit Feeder, Model: IFF-100 to 600
The IFF-100 to 600 ingredient fruit feeder is designed for connection to freezers having a capacity from 100 LPH to 600 LPH ice creams. It efficiently & gently injects dry nuts or fresh fruits in to the ice cream flow.
Dry nut/fresh fruit feeding is done through product hopper. Control of adjustment of quality is by variable AC frequency drive.
To assemble & dismantle the fruit ingredient feeder, no spanner is required.
The design is C.I.P. suitable. Agitator & dosing screw are easily dismantled for manual cleaning.
To make butter scotch ice cream, chikee should be button shape without dust.
Ingredients are feed from top of the 'PANELA' pump and pump rotor will take it down & transferred to the ice cream flow with the help of three blades, then final mixing of ingredients in the ice cream will be done in a vertical mixer.
Ingredients are feed from top of the rotor are taken down by rotor & transferred to the ice cream flow with the help of blades, then mixing of ice cream & ingredients is done in a vertical mixer.
|
| Dry Nut Hopper |
: |
15-liter capacity |
| IFF100 to 600 |
: |
suitable for 100 to 600 litter freezer |
| Drive details |
|
|
| Rotor |
: |
1.0 HP AC variable frequency Drive |
| Mixing Auger |
: |
1.0 HP fix drive |
| Screw Feeder |
: |
0.5 HP AC variable frequency drive |
Note:
It will be possible to attach automatic "weight based feeding system" in future. |
|
FRUIT FEEDER,
Suitable for 100 to 1200-liter freezer,
Model: IFF 100 to 1200

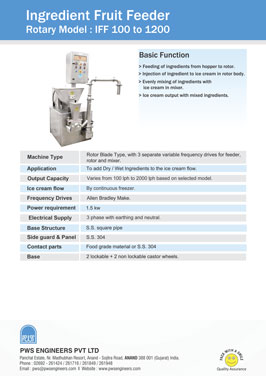

Ingredient Fruit Feeder, Model: IFF-100 to 1200
The IFF-100 to 1200 ingredient fruit feeder is designed for connection to freezers having a capacity from 100 LPH to 1200 LPH ice creams. It efficiently & gently injects dry nuts or fresh fruits in to the ice cream flow.
Dry nut/fresh fruit feeding is done through product hopper. Control of adjustment of quality is by variable AC frequency drive.
To assemble & dismantle the fruit ingredient feeder, no spanner is required.
The design is C.I.P. suitable. Agitator & dosing screw are easily dismantled for manual cleaning.
To make butter scotch ice cream, chikee should be button shape without dust.
Ingredients are feed from top of the 'PANELA' pump and pump rotor will take it down & transferred to the ice cream flow with the help of three blades, then final mixing of ingredients in the ice cream will be done in a vertical mixer.
Ingredients are feed from top of the rotor are taken down by rotor & transferred to the ice cream flow with the help of blades, then mixing of ice cream & ingredients is done in a vertical mixer.
|
| Dry Nut Hopper |
: |
15-liter capacity |
| IFF100 to 1200 |
: |
suitable for 100 to 1200 litter freezer |
| Drive details |
|
|
| Rotor |
: |
1.0 HP AC variable frequency Drive |
| Mixing Auger |
: |
1.0 HP fix drive |
| Screw Feeder |
: |
0.5 HP AC variable frequency drive |
Note:
It will be possible to attach automatic "weight based feeding system" in future. |
|
|
|
