ROTARY

ICE CREAM CUP FILLING MACHINE
Model : IC30 PS Cup

Automatic High Speed Cup Filling - Sealing Machine for products like ice-creams.

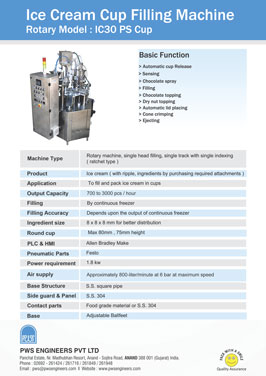

ROTARY ICE CREAM CUP FILLING MACHINE

Model : IC30 PS CUP

Backed by rich industry experience, Our Rotary driven automatic Ice cream Cup filling machine, Single Head Filling, Single Track with Single Indexing gives accuracy, speed and flexibility when handling cream, powders and granules. Its stainless-steel construction, easy-to-remove tooling and hopper allow for simple cleaning and maintenance with latest techniques in compliance with set industry standards.

Our Rotary Type Filling Machines for Ice-Cream Cup, Curd, Yogurt, Lassi, Ghee, Shrikhand, Chees, Ketchup etc.

Features

  • PLC Controlled Machines
  • Servo Drive Indexing System
  • Accurate filling at promised speed

Basic Functions

  • Automatic Cup Release
  • Sensing
  • Chocolate spray
  • Filling
  • Chocolate topping



  • Dry nut topping
  • Automatic Lid Placing
  • Cone crimping
  • Ejecting
*Customisations for additional stations are possible.

Specifications

  • Machine Type : Rotary machine, single head filling, single track with single indexing ( ratchet type )

  • Product : Ice cream ( 2 in 1 ice cream, with ripple, with ingredients by purchasing required attachments )

  • Application : To fill and pack ice cream in cup
  • Output Capacity : 700 to 3000 pcs / hour
  • Filling : By continuous freezer
  • Filling Accuracy : Depends on the output of continuous freezer
  • Ingredient size : 8 x 8 x 8 mm for better distribution
  • Round cup : Max 80mm Æ, 75mm height
  • PLC : Allen Bradley Make



  • HMI : Allen Bradley Make
  • Pneumatic Parts : Festo
  • Power requirement : 1.8 kw
  • Air supply : Approximately 800-liter/minute at 6 bar at maximum speed
  • Base Structure : S.S. square pipe
  • Side guard : S.S. 304
  • Panel : S.S 304
  • Contact parts : Food grade material or S.S. 304
  • Base : Adjustable Ball feet
