Ripple Machine

Model: RP 100 x3

Range of Ripple Machine with Continuous Ice-Cream Freezer

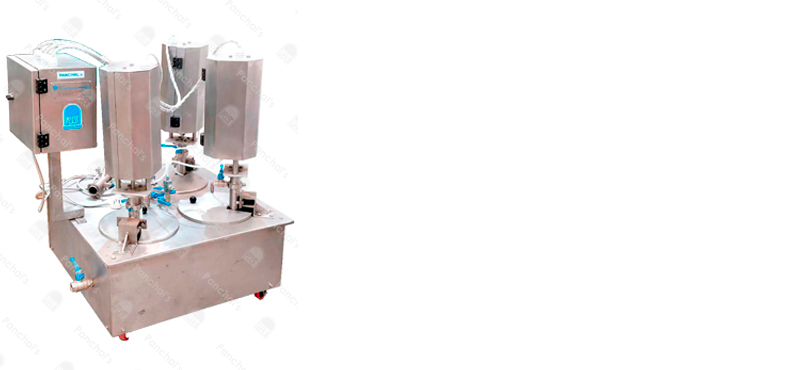

Ripple Machine

Model: RP 100 x3

The Ripple is a pump station, compact and easy to use. It is the ideal equipment to make ice cream with flakes and to inject syrups, viscous products or chocolate in the ice cream flow, by means of automatic fillers or with continuous fillers with special nozzles.

Features

  • Easy to access with PLC panel
  • Injects syrups with seeds or small bits
  • Variable adjustment of the different syrup
  • Made from stainless steel

  • The Pneumatic Ripple Pump can work in combination with a continuous Freezer

  • It also can add Honey, thick resin or fruit crush.

Specifications

  • Ripple Flavour : Single, Double, Triple and Four Flavour Options

  • Ripple Viscosity : Up to 2000 cp & 60 Brix %
  • Machine Type : Reciprocating Pump Type

  • Application : To supply ripple to for using in filling machine our continuous freezer output

  • Output Capacity : Varies from 2 to 8 litre / minute
  • Tank Capacity : 8 litres per flavour tank
  • Power requirement : 0.2 kw

  • Air Supply : 50 to 200 litre/ min based on different models at 6 bar working pressure



  • Electrical Supply : 3 phase with earthing and neutral
  • Base Structure : S.S. Square Pipe
  • Side Guard : S.S. 304
  • Panel : S.S. 304
  • Contact Parts : Food grade material or S.S. 304
  • Base : 2 lockable + 2 non lockable castor wheels


Media

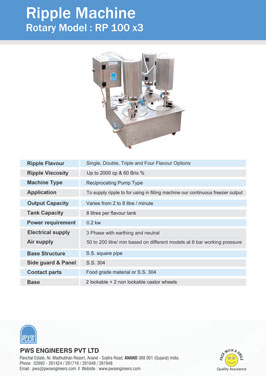

Download PDF to Print
