Premium Ingredient Fruit Feeder

Model: PIFF 2000




Premium Ingredient Fruit Feeder

Model: PIFF 2000

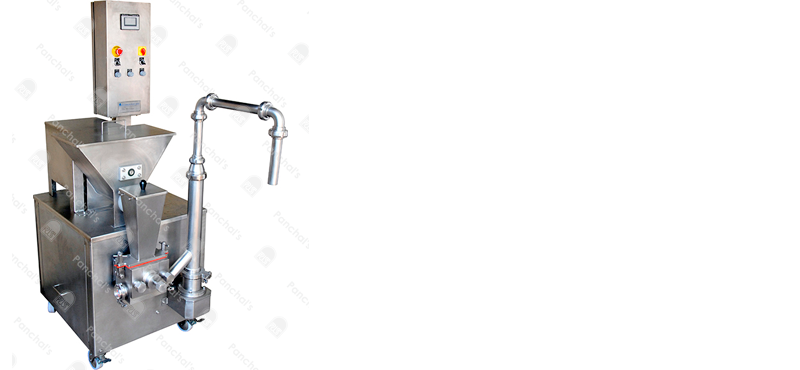

The fruit feeder machine injects small pieces of ingredients, such as nuts, chocolate chips, fresh or candied fruits, into the ice cream.

Give Attractive Striking look with delicious and tasty to Ice Cream. With different elements like Chocolates, nuts, fruit, dried fruits, candies, cookies, caramel, chocolate chips, raisins and fudge are just a small selection of the many types of ingredients adequately sized dosage can be added to ice cream with the facilitate of ingredient feeders Machine . Fruit Feeder is a compact machine with controlled addition of ingredients into a continuous flow of ice cream.

Features

  • Easy to access with PLC panel
  • Injects syrups with seeds or small bits
  • Variable adjustment of the different syrup
  • Made from stainless steel
  • The Pneumatic Ripple Pump can work in combination with a continuous Freezer

  • It also can add Honey, thick resin or fruit crush.

Basic Functions

  • Feeding of ingredients from hopper to piston pump
  • Injection of ingredient to ice cream in by piston pump
  • Evenly mixing of ingredients with ice cream in mixer
  • Ice cream output with mixed ingredients.

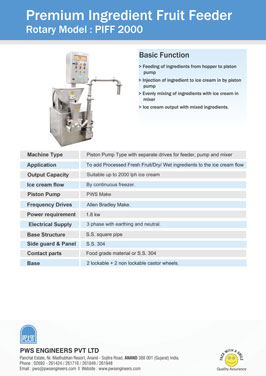

Specifications

  • Machine Type : Piston Pump Type with separate drives for feeder, pump and mixer

  • Application : To add Processed Fresh Fruit/Dry/ Wet ingredients to the ice cream flow

  • Output Capacity : Suitable up to 2000 lph ice cream
  • Ice cream flow : By continuous freezer
  • Piston Pump : PWS Make
  • Variable Frequency Drives : Allen Bradley Make



  • Power requirements : 1.8 kw
  • Electrical Supply : 3 phase with earthing and neutral
  • Base Structure : S.S. Square pipe
  • Panel : S.S. 304
  • Contact Parts : Food grade material or S.S. 304
  • Base : 2 lockable + 2 non lockable castor wheels
