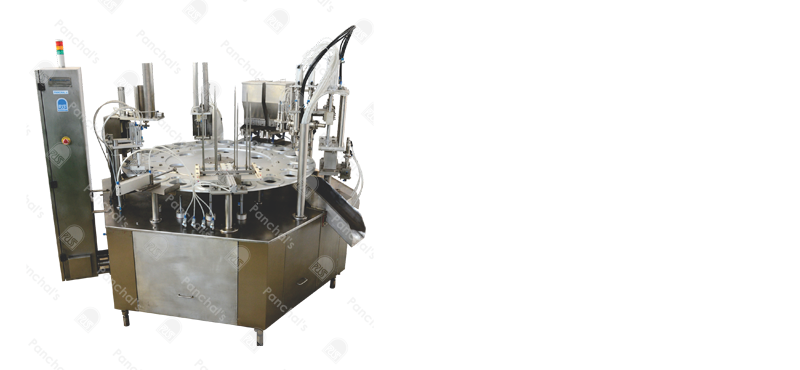

Ice cream Tub Filling Rotary Machine

Model : RTF 20 PS

Automatic Filler for multi flower sundae ice cream in plastic tubs.




Ice cream Tub Filling Rotary Machine

Model : RTF 20 PS

Our Linear Tub Filling Machine can filled Ingredients like nuts, chocolate chips and syrups like chocolate and other flavours mix with variety of ice creams in Sundae Tub gives attractive flower looks..

Features

  • PLC controlled operations and it is a fully automatic machine.

  • All contact parts are of SS 304 food grade material
  • Single & Double track models
  • Suitable for films from reel or pre-cut lids.

Basic Functions

  • Automatic Tub Release
  • Sensing
  • Filling – Multi Flower / Twisting
  • Chocolate topping - optional



  • Dry nut topping - optional
  • Automatic / Manual Lid Placing
  • Automatic / Manual Lid Pressing
  • Ejecting

Specifications

  • Machine Type: Rotary, Single head Filling, Single Track with Single Indexing

  • Product: Ice cream
  • Application: To fill and pack ice cream in tubs
  • output capacity : 700 to 2000 tubes per hour
  • Filling : By Continuous Freezer
  • Filling Quantity: Up to 1 liter tubs
  • Filling Accuracy: Depends 100% upon the continuous freezer output
  • PLC : Allen Bradley Make
  • HMI : Allen Bradley Make



  • Pneumatic Parts : Festo
  • Power requirement : 2 kw
  • Electrical Supply : 3 Phase with earthing and neutral

  • Air Supply : Approximately 1500-liter/minute at 6 bar from 12 mm I.D. pipe at machine header

  • Base Structure : S.S. square pipe
  • Side guard : S.S. 304
  • Panel : S.S. 304
  • Contact parts : Food grade material or S.S. 304
  • Base : Adjustable Ballfeet


Media

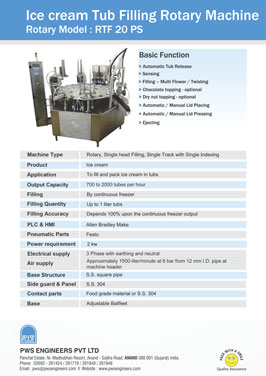

Download PDF to Print
